Getting Started

Margrete RPC is a Margrete plugin plus a Python client package that lets you script chart editing for UMIGURI/Margrete.

Use it to read and rewrite charts programmatically: place notes, edit events, and apply changes inside the editor.

Requirements

• Python 3.13 or later
• Margrete 1.8.0 or later

Installation

1. Install the plugin

1. Download the latest release from the GitHub Releases page.

2. Open margrete-rpc-vX.X.X.zip and copy margrete-rpc.dll and margrete-rpc.ini to your Margrete plugins directory.

   Margrete

   data

   i18n

   plugins 👈

   margrete-rpc.dll

   margrete-rpc.ini

   scripts

   Margrete.exe

3. Restart Margrete. Then open Extensions → Manage Extensions, enable margrete-rpc.dll, and click Confirm.



2. Install the Python package

pip install margrete-rpc

uv add margrete-rpc

Quick start

1. In Margrete, open Extensions → Margrete RPC to start the plugin.



   👉


   You need to start the plugin each time Margrete restarts.

2. Create a file called example.py:

   from margrete_rpc import Margrete
   from margrete_rpc.chart.notes import Tap

   m = Margrete()  # auto-detect the running plugin instance
   status = m.status()
   print(f"Plugin v{status.server_version} (pid {status.pid})")
   print(f"Log: {status.log_path}")

   with m.open_edit() as tx:
       tx.chart.notes.append(Tap(t=0, x=0, w=4))
       # changes are applied when this block exits successfully

   This connects to Margrete, prints the ServerStatus, opens an edit transaction, and appends a Tap note to the chart.

3. Run the script and check the editor:

   python example.py

   A new tap note will appear in the editor.

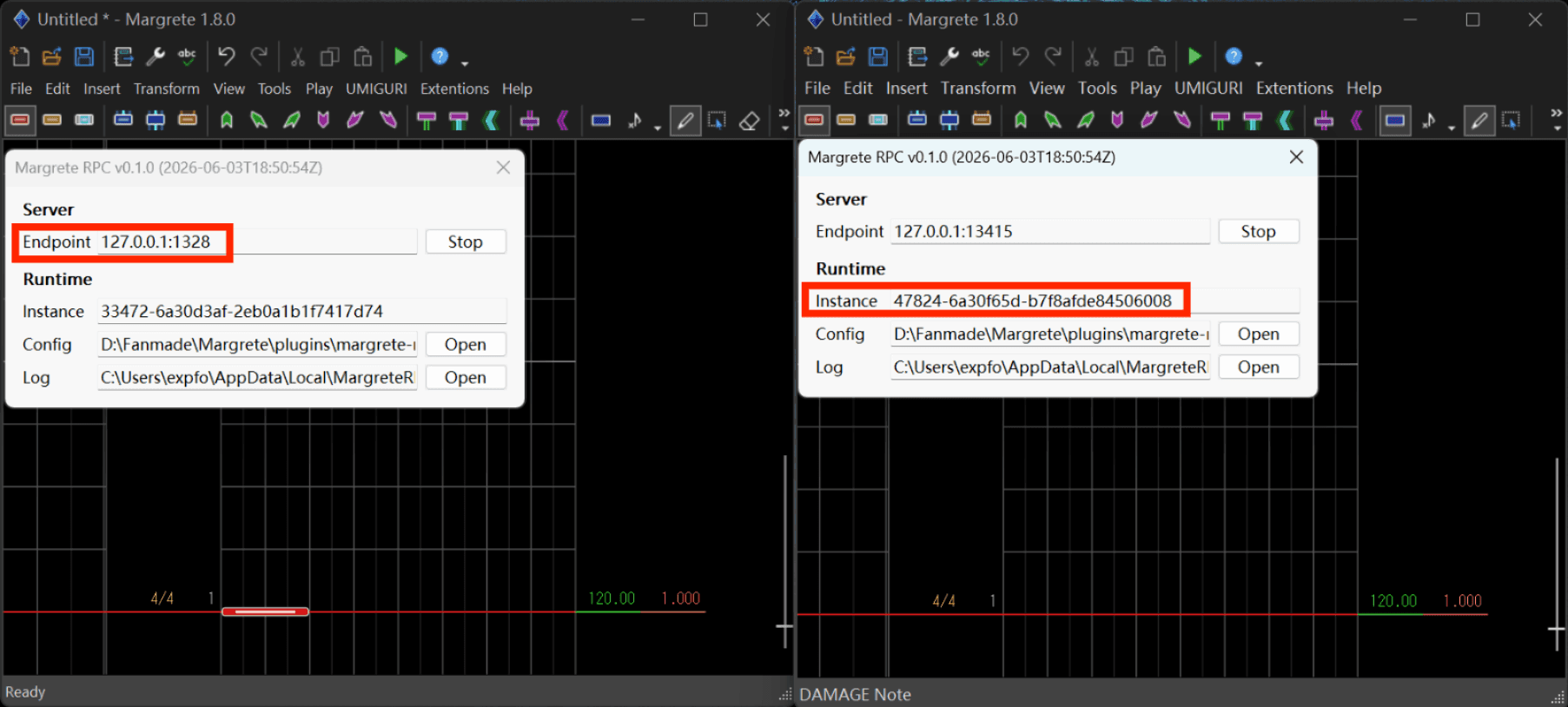

Handle multiple Margrete instances

Margrete() with no arguments works when exactly one running plugin instance is discovered.

When multiple Margrete instances are running, pass endpoint or instance_id.

Use list_instances() when you need to inspect available MargreteInstance values first:

from margrete_rpc import Margrete, list_instances

# list all discovered instances
for inst in list_instances():
    print(inst.instance_id, inst.endpoint)

# connect by explicit host:port (left Margrete)
m_left = Margrete(endpoint="127.0.0.1:1328")

# connect by the instance_id (right Margrete)
m_right = Margrete(instance_id="47824-6a30f65d-b7f8afde84506008")
